Single Port High Voltage PoE LAN Transformer SMD Soldering 12 PIN 7490140123B

Name: Single Port High Voltage PoE LAN Transformer SMD Soldering 12 PIN 7490140123B
Brand: Shareway
Price: 0.30 USD

Wholesale Single Port High Voltage PoE LAN Transformer SMD Soldering 12 PIN 7490140123B from china suppliers

Brand Name : Shareway

Model Number : 7490140123B

Certification : RoHs, Reach, UL

Place of Origin : CHINA

MOQ : 100

Price : USD$0.30 to USD$0.85

Payment Terms : T/T

Supply Ability : 1000,000 piece per month

Delivery Time : onw week for sample, 4 weeks for mass order

Packaging Details : Tray, Tape & Reel

Cross p/n : 7490140123B

Pin : 12 PINS

Type : SMD Soldering

Hi-pot : 4500V

Package : Tape & Reel, Tube

Speed : 10/100/1000M Base-T

Shipping : DHL, UPS, Fedex, TNT

Certificate : UL, Reach, RoHs

Sample : Free sample supported

Contact Now

Shareway High Voltage Lan transformer with magnetic SMD 12 PIN cross part 7490140122B

Features:

1. Inductance: 100kHz/ 100mA @ 8mA DC Bias

2. OCL: 350 uH Min

3. Turns ratio:100kHz/ 100mA 1TX : 1RX

4. Insertion Loss: 1-100MHz

5. Return Loss:

1-30MHz: -10dB min

30-60MHz: -7dB min

60-80MHz: -5dB min

80-100MHz: -4dB min

6. Common mode rejection ratio:

1-30MHz: -35dB min

30-60MHz: -30dB min

60-100MHz: -28dB min

7. Crosstalk:

1-60MHz: -42dB min

60-100MHz: -40dB min

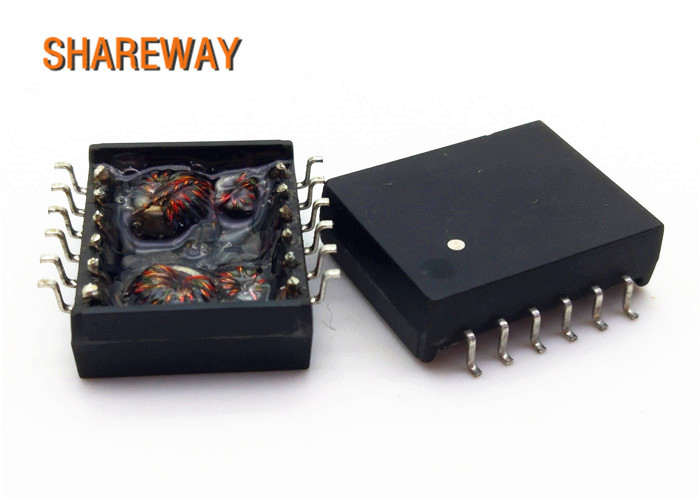

Product photo:

Single Port High Voltage PoE LAN Transformer SMD Soldering 12 PIN 7490140123B

Schematic diagram:

Single Port High Voltage PoE LAN Transformer SMD Soldering 12 PIN 7490140123B

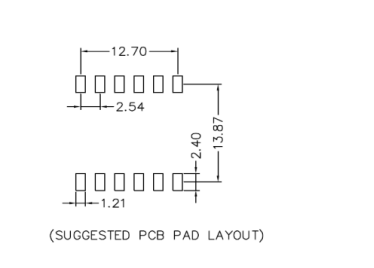

Mechanical dimension:

Single Port High Voltage PoE LAN Transformer SMD Soldering 12 PIN 7490140123B

How to place the order to us:

1. Please send your demand datasheet to us.

2. We will provide drop in alternative and price for refer.

3. If price ok, then we will send you some free sample for testing.

4. After testing, you can place the mass order and process the payment.

5. The lead time for mass order usually is about 4 weeks.

6. When the order is ready, we will ship out and send you the shipping details for tracking.

Please contact sales04@shareway-tech.com freely for any further information.
