JD2-0010 Shielded Rj45 Jack / Straight Rj45 Pcb Jack 8P8C Connector For PC

Brand Name : Shareway

Model Number : JD2-0010

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel

Product name : JD2-0010 shielded straight rj45 pcb jack 8P8C connector for PC

Type : Straight rj45 pcb jack

Application : PC

Shield : Shielded / unshielded

Material : Copper or alloy

Pin : 8P8C

Contact Now

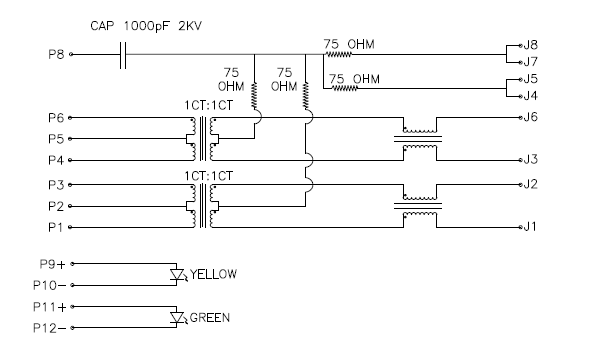

JD2-0010 shielded straight rj45 pcb jack 8P8C connector for PC

Electronical Specifications:

  1. Turn Ratio @100KHz: (P1-P3):(J1-J2) = 1:1± 5% (P4-P6):(J3-J6) = 1:1± 5%
  2. Primary Inductance: 350uH MIN @100KHz, 0.1V 8mA DC BIAS
  3. DC Resistance: (P1-P2):(J3-J6) 1.2 OHMS MAX
  4. Insertion Loss: 1-100MHz -1.2dB MAX
  5. Return Loss: 1-30MHz -16dB MIN 30-60MHz -12dB MIN 60-80MHz -10dB MIN
  6. Cross Talk: 1-100MHz -30dB MIN
  7. Common to common mode attrnuation : 1-100MHz -30dB MIN
  8. Isolatioon : PHY Side to Line Side : 1500VAC or 2250VDC

JD2-0010 Shielded Rj45 Jack / Straight Rj45 Pcb Jack 8P8C Connector For PC

LED Specifications:

STANDARD LED WAVELENGTH Forward V(max) TYP
Green 565nm 2.4V 2.2V
Yellow 590nm 2.5V 2.1V

JD2-0010 shielded straight rj45 pcb jack 8P8C connector for PC

Shape and Dimensions:

JD2-0010 Shielded Rj45 Jack / Straight Rj45 Pcb Jack 8P8C Connector For PC
