Brand Name : Shareway
Model Number : E2032NL
Certification : CE UL RoHS ISO9001:2008
Place of Origin : Guangdong China
MOQ : 100/500/1000
Price : Supportive
Payment Terms : TT,Paypal
Supply Ability : 3000K.PCS/Month
Delivery Time : Stock or 3 weeks
Packaging Details : Tube
Product name : RoHS certification E2032NL 1x1 Port Ethernet Magnetic Lan Transformer
Port : Single
Base Material : Ferrit/ Ferrite/Cu-Ni-Sn
Hi-pot : 1500Vrms
Speed : 10/100/1000/10G Base-TX
Phase : Single
RoHS certification E2032NL 1x1 Port Ethernet Magnetic Lan Transformer
Description:
ITEM | Specifications | Test conditions | Spec |
1 | LP(15-16) | 10KHz/0.005vrms | 67uH MIN |
2 | HIPOT PRI TO SEC | 1500VAC/1MIN | |
3 | TURN RATIO | 10KHz 10mV | 1CT:1CT ±5% |
4 | DCR | 0.3 OHMS MAX | |
5 | LEAKAGE INDUCTANCE | 1MHz MIN | 0.25 uH MAX |
6 | CAPACITANCE WINDING TO WINDING | 140KHz | 10pF MAX |
RoHS certification E2032NL 1x1 Port Ethernet Magnetic Lan Transformer

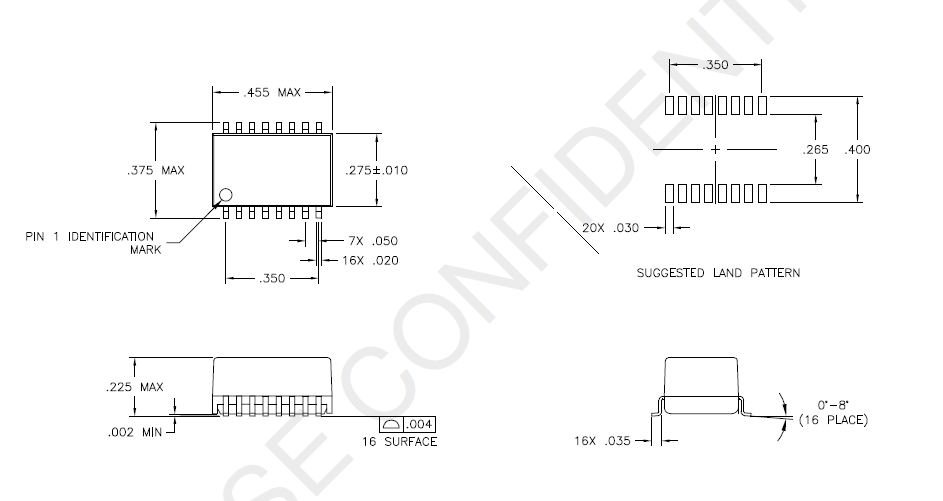

Shape and Dimensions:
![]() |
1x1 Port Ethernet Magnetic Transformers E2032NL RoHS certification Images |
